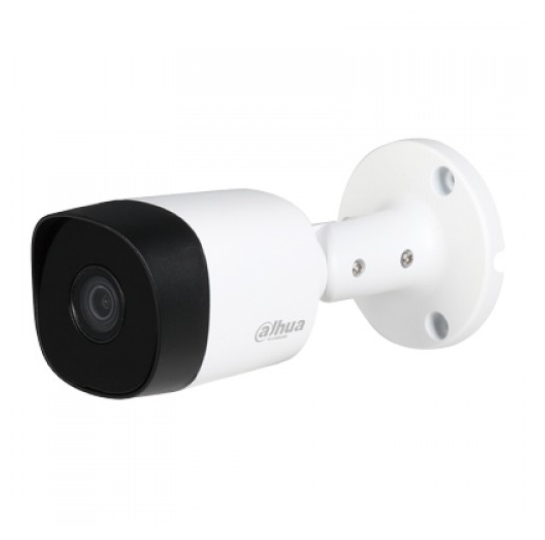

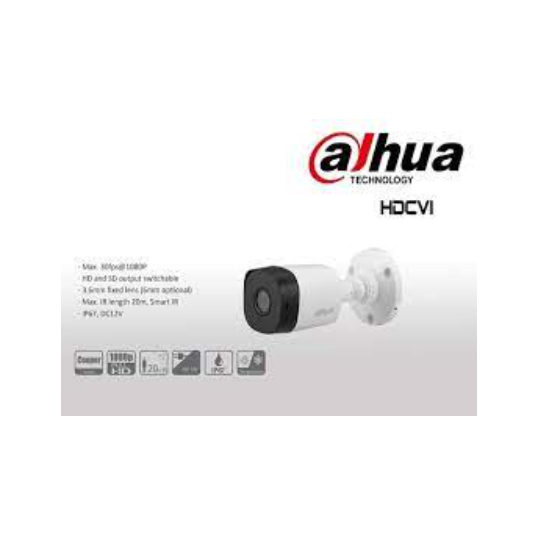

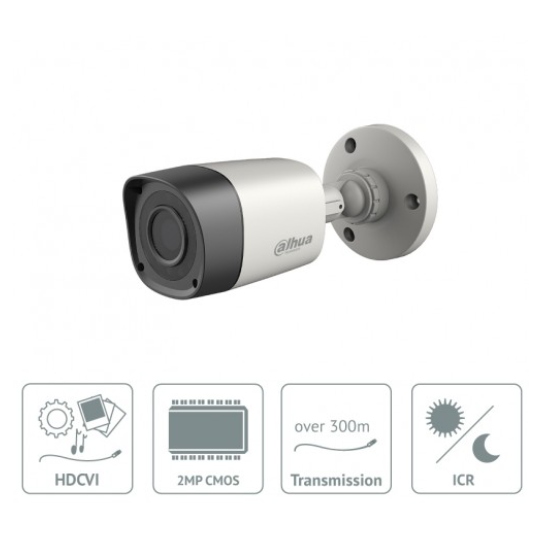

Dahua CCTV CAMERA 2 Megapixel HDCVI 20M IR Camera HAC-B1A21
Inhouse product
Product details of Dahua CCTV CAMERA 2 Megapixel HDCVI 20M IR Camera HAC-B1A21
2 Megapixel
Model: HAC-B1A21
Max 30fps@1080P
HD and SD output switchable
3.6mm fixed lens (2.8mm, 6mm optional)
Max. IR length 20m, Smart IR
IP67, DC12V
Image Sensor 1/3" CMOS
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.05Lux/F2.0, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 12
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F2.0
Angle of View H: 72.3° (91.6°/46°)
Focus Control N/A
Close Focus Distance 500mm (400mm/1300mm) 19.69'' (15.75''/51.18'')
Frame Rate 25/30fps@1080p
Video Output 1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Power Supply 12V DC ±25%
Power Consumption Max 2.8W (12V DC, IR on)
Casing Plastic
Dimensions 154.3mm×69.8mm×69.8mm (6.07"×2.75"×2.75")
Net Weight 0.20kg (0.44lb)
Gross Weight 0.27kg (0.60lb)
Specipication of Dahua CCTV CAMERA 2 Megapixel HDCVI 20M IR Camera HAC-B1A21
Brand- Dehua
SKU-231217ED74
